Key Features
- Modular Bolted Design
- Cast Steel Pitman
- Integral Motor Base
- Standard flywheel guards
- Non-welded frame construction
- Robust steel structure
- Outstanding fatigue strength
- Available as base unit or modular plant

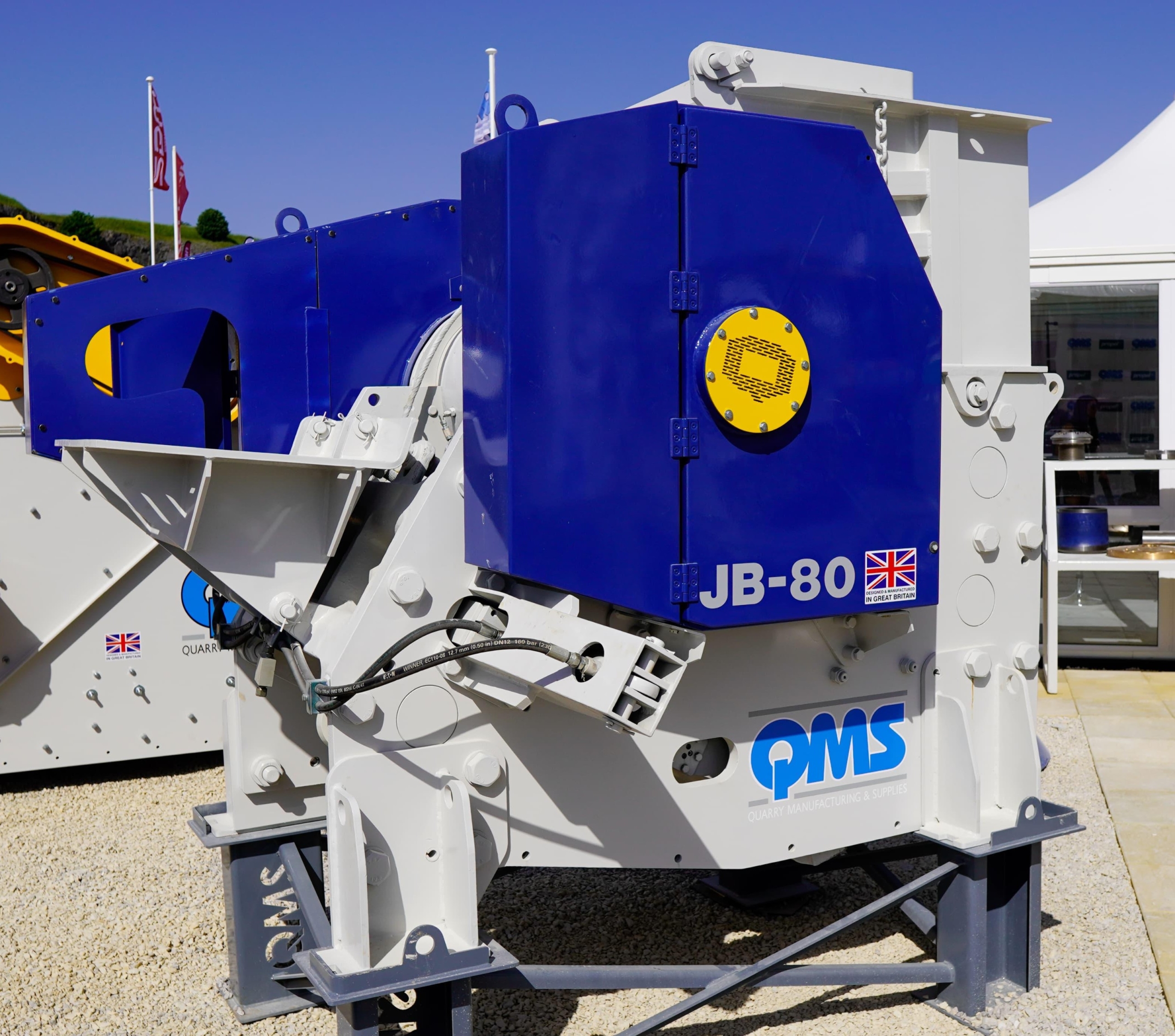

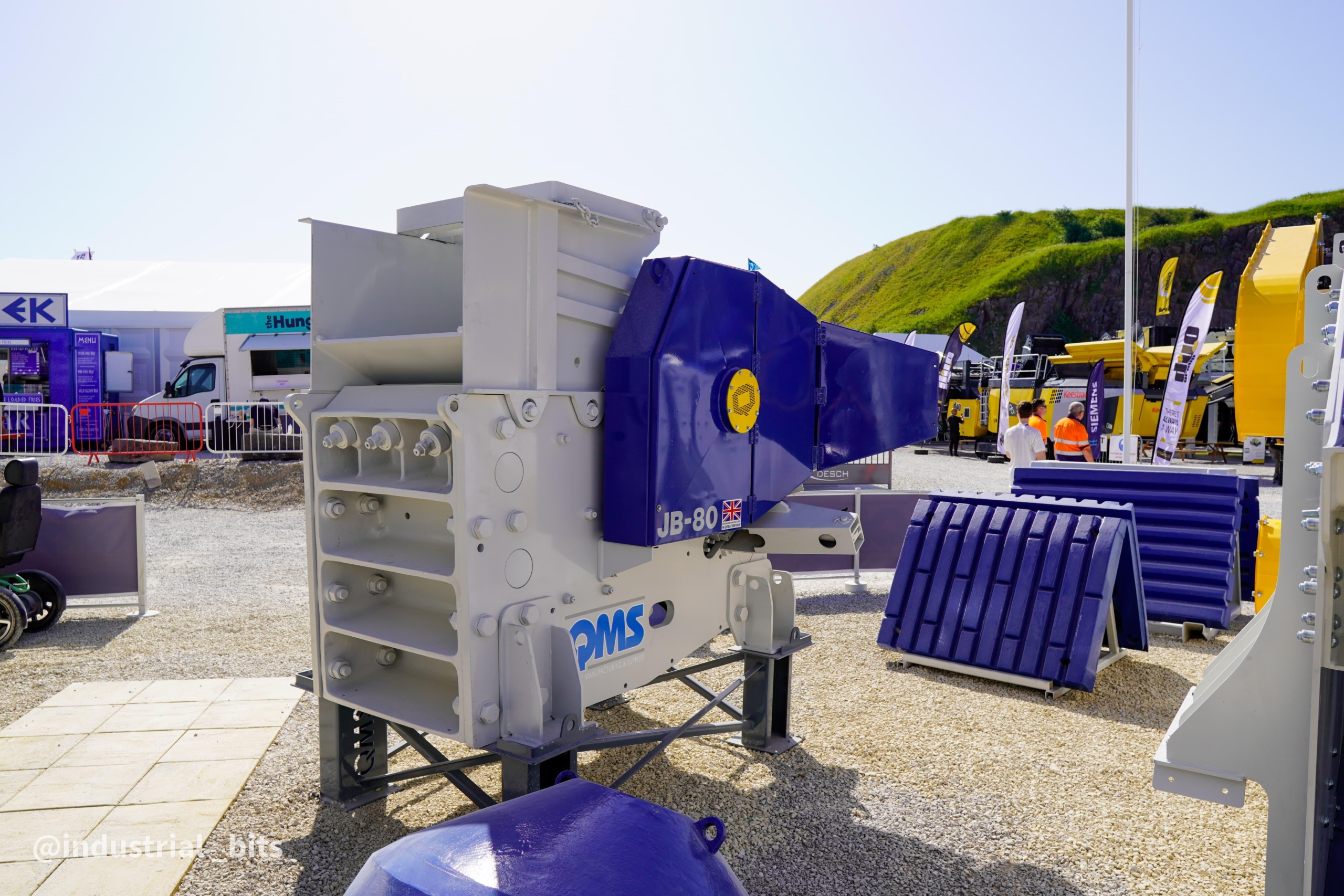

JB Series
EnquireQMS’ JB Series range consists of different size models, engineered to deliver the maximum productivity with reduced operating costs.
Designed, developed and manufactured in the UK and offering the best in engineering excellence, the JB Series robust design complete with high quality cast steel components and premium spherical roller bearings contributes to its reliability and high performance.
There is a selection of jaw types available for various crushing applications. All jaw profiles are manufactured using high quality material and experienced design, resulting in high performance and low operating costs.
Please contact our sales team for recommendations concerning your specific application.
Specification
| Model | Feed Opening Size (mm) | Motor Power kW (hp) | Minimum CSS (mm) | Maximum CSS (mm) | Capacity Max. Setting scalped feed mtph (stph) | Capacity Max. Setting Non scalped feed Mtph (stph) | Weight (basic unit)* (kg) |
|---|---|---|---|---|---|---|---|
| JB96 | 930x580 | 90 (125) | 60 | 175 | 390 (430) | 592 (662) | 10,200 |
| JB106 | 1060x700 | 110 (150) | 70 | 200 | 500 (560) | 760 (850) | 15,600 |
| JB116 | 1150x760 | 132 (175) | 70 | 200 | 520 (580) | 800 (880) | 19,500 |
| JB1275 | 1200x750 | 132 (175) | 40 | 200 | 17,000 | ||
| JB120 | 1200x870 | 160 (200) | 70 | 175 | 540 (600) | 800 (880) | 28,000 |
| JB130 | 1300x1000 | 185 (250) | 100 | 250 | 831 (915) | 1267 (1416) | 40,200 |
| JB150 | 1400x1200 | 200 (300) | 125 | 250 | 880 (970) | 1319 (1474) | 51,000 |
*Weights are approximate, depending on customer specification and/or application.
