The QMS B-Series cone crushers feature a unique hydraulic system which provides automatic overload protection by allowing the head assembly to drop, permitting the passage of tramp iron and other non-crushable material.
The system then automatically returns the head assembly to its original position. The unique design of the hydraulic system means the crusher operates at a definite setting with less setting drift and greater stability throughout the circuit. The crusher setting is instantaneously maintained even after passing a piece of tramp iron.

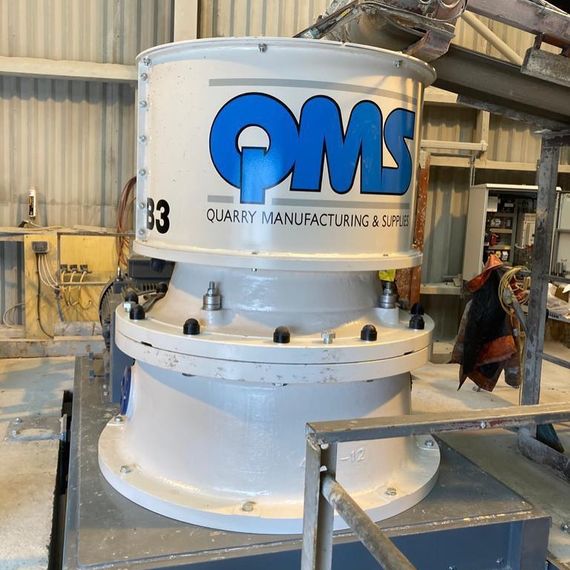

The liners of the B3 crusher do not require any backing material like plastic, epoxy or zinc. This saves time usually spent mixing, pouring and waiting for the curing to take place, whilst also increasing safety for your maintenance staff.
The B-Series cones are offered with several standard cavity types:-
EF = Extra Fine F=Fine
MF = Medium Fine M=Medium
MC = Medium Coarse C=Coarse
EC = Extra Coarse
The cones are competitively priced and include lubrication and hydraulic systems, control system with touch screen HMI, drive and guards and support frame within the purchase price. Drive motor and mains electrical starter panels are offered as optional extras.
Please contact our sales team for recommendations concerning your specific application.

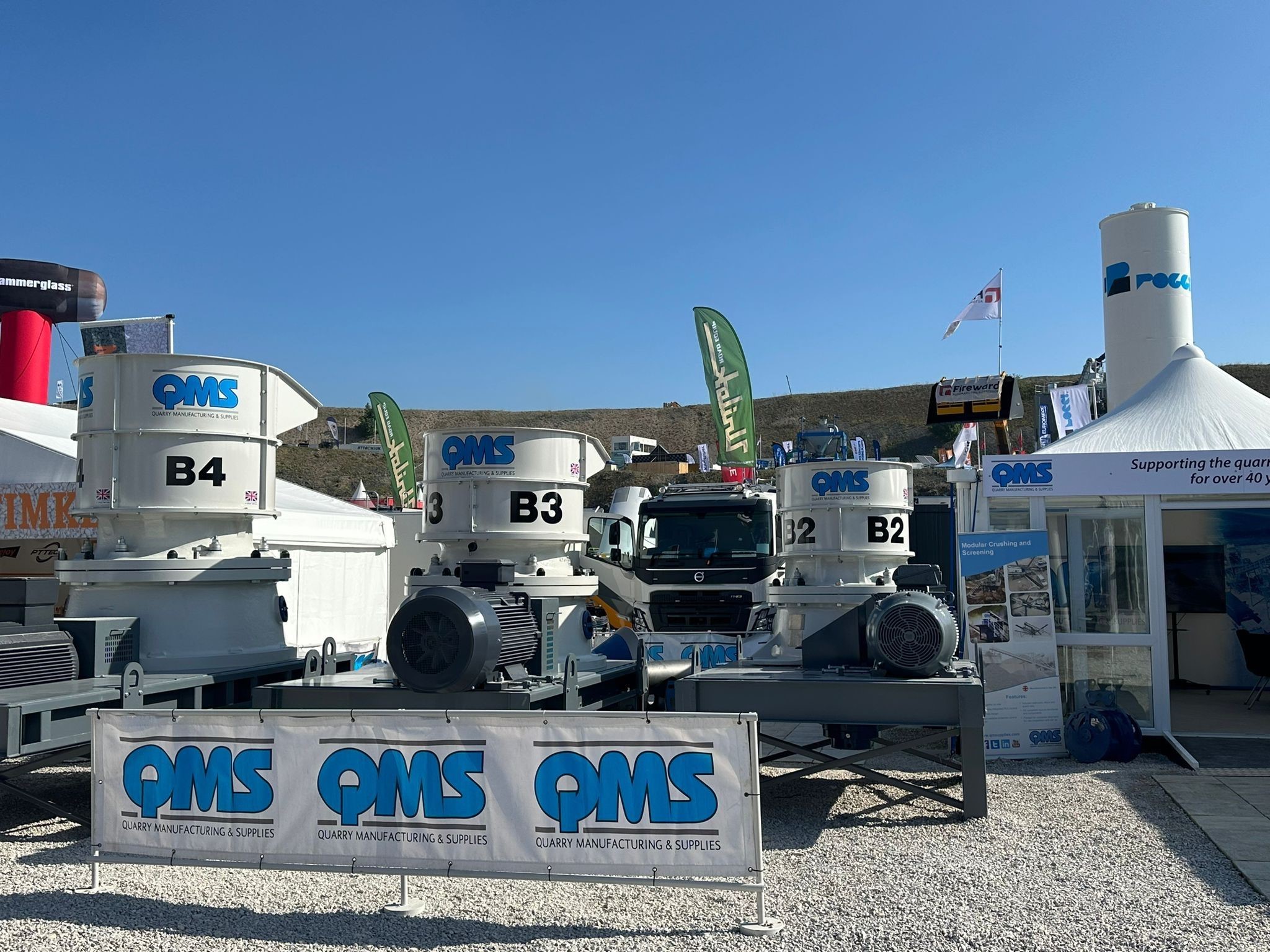

| Model | Motor Power kW (hp) | Nominal Capacity mtph | Max. Feed Size mm | Closed Side Setting range CSS (mm) | Cavity Types | Weight* kg |
|---|---|---|---|---|---|---|

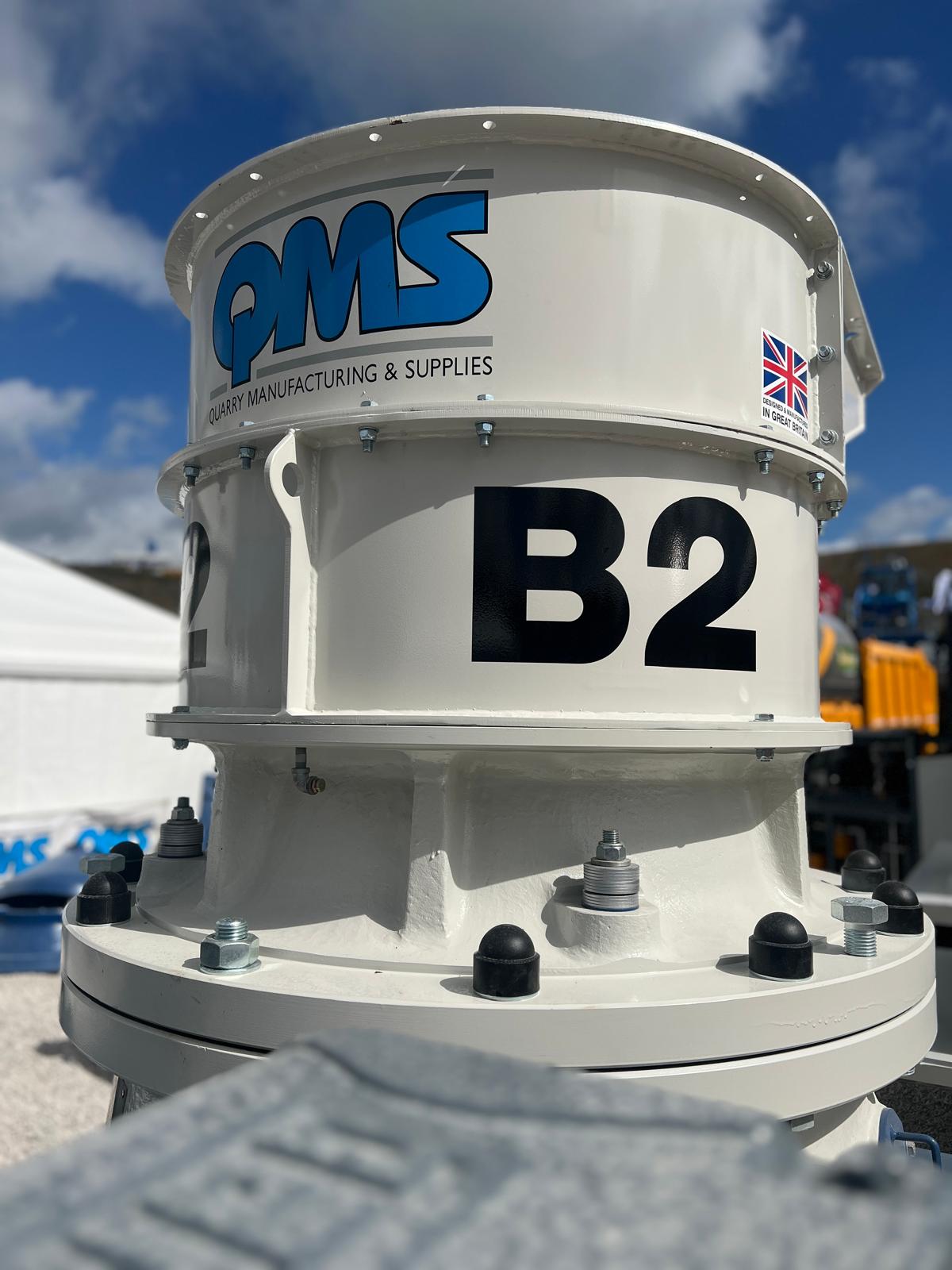

| B2 | 90 (125) | 23-132 | 25-120 | 4-35 | EC, C, M, MF, F EF | 5,300 |

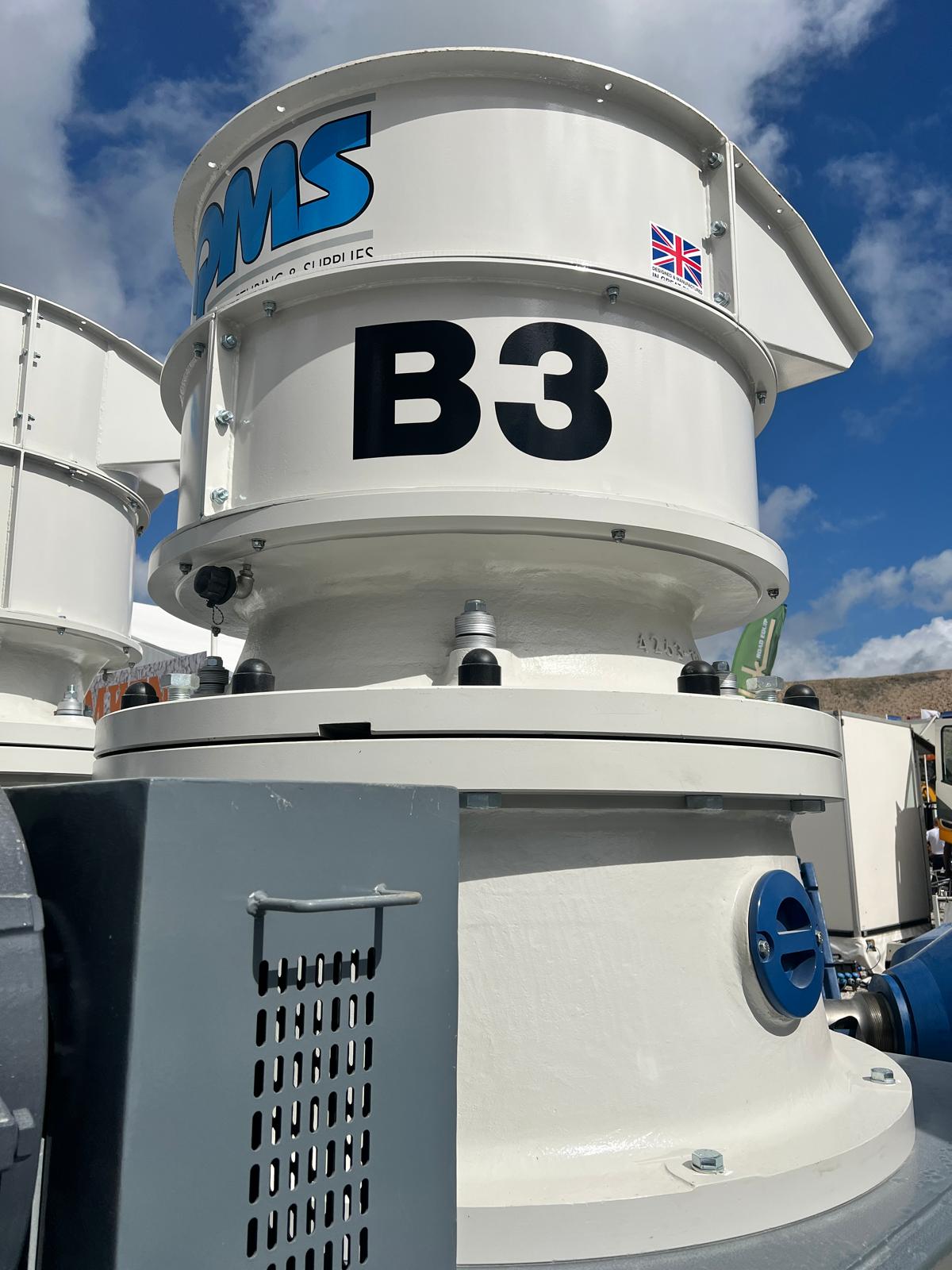

| B3 | 162 (210) | 26-220 | 35-185 | 4-41 | EC, C, M, MF, F EF | 11,500 |

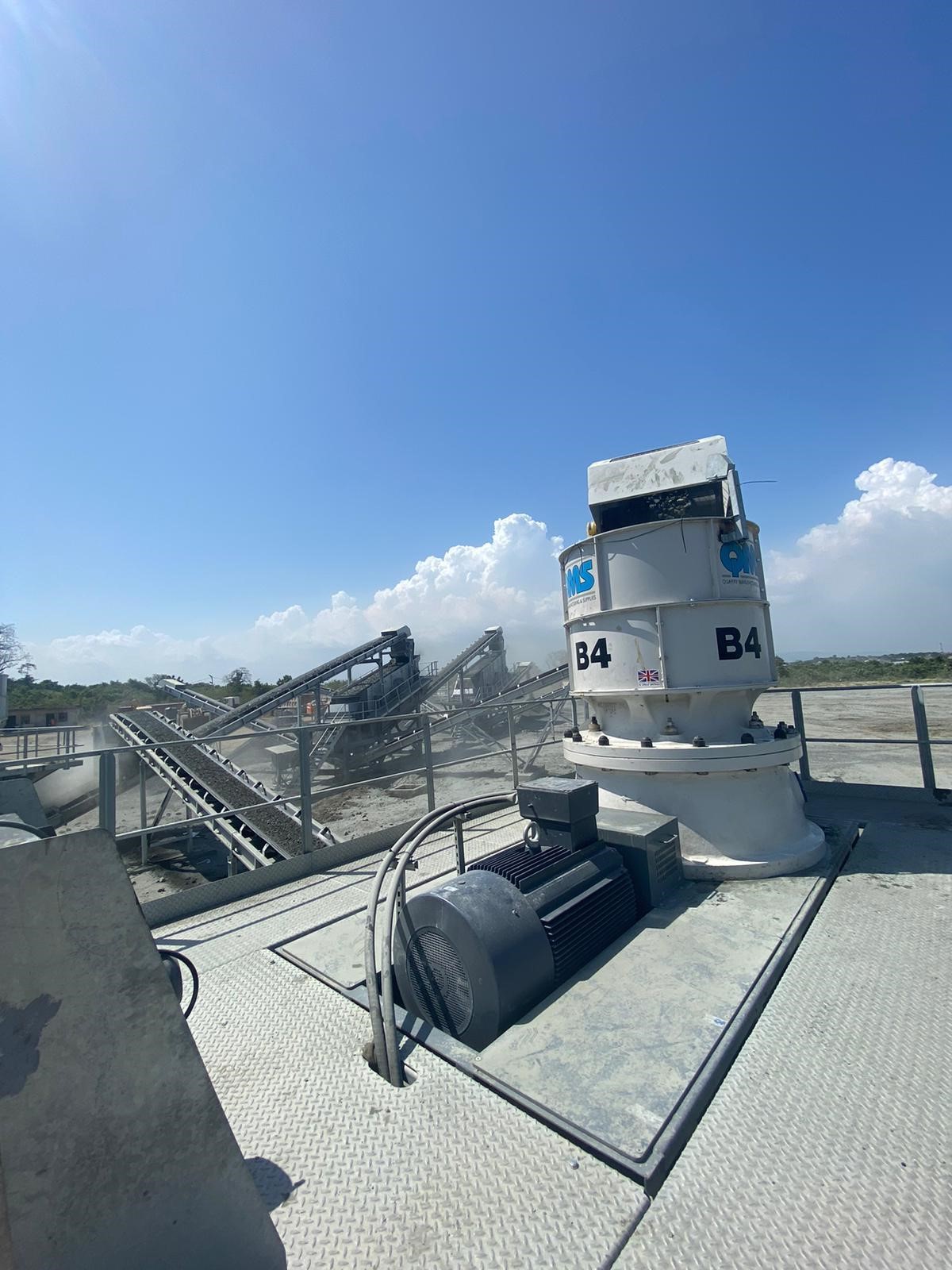

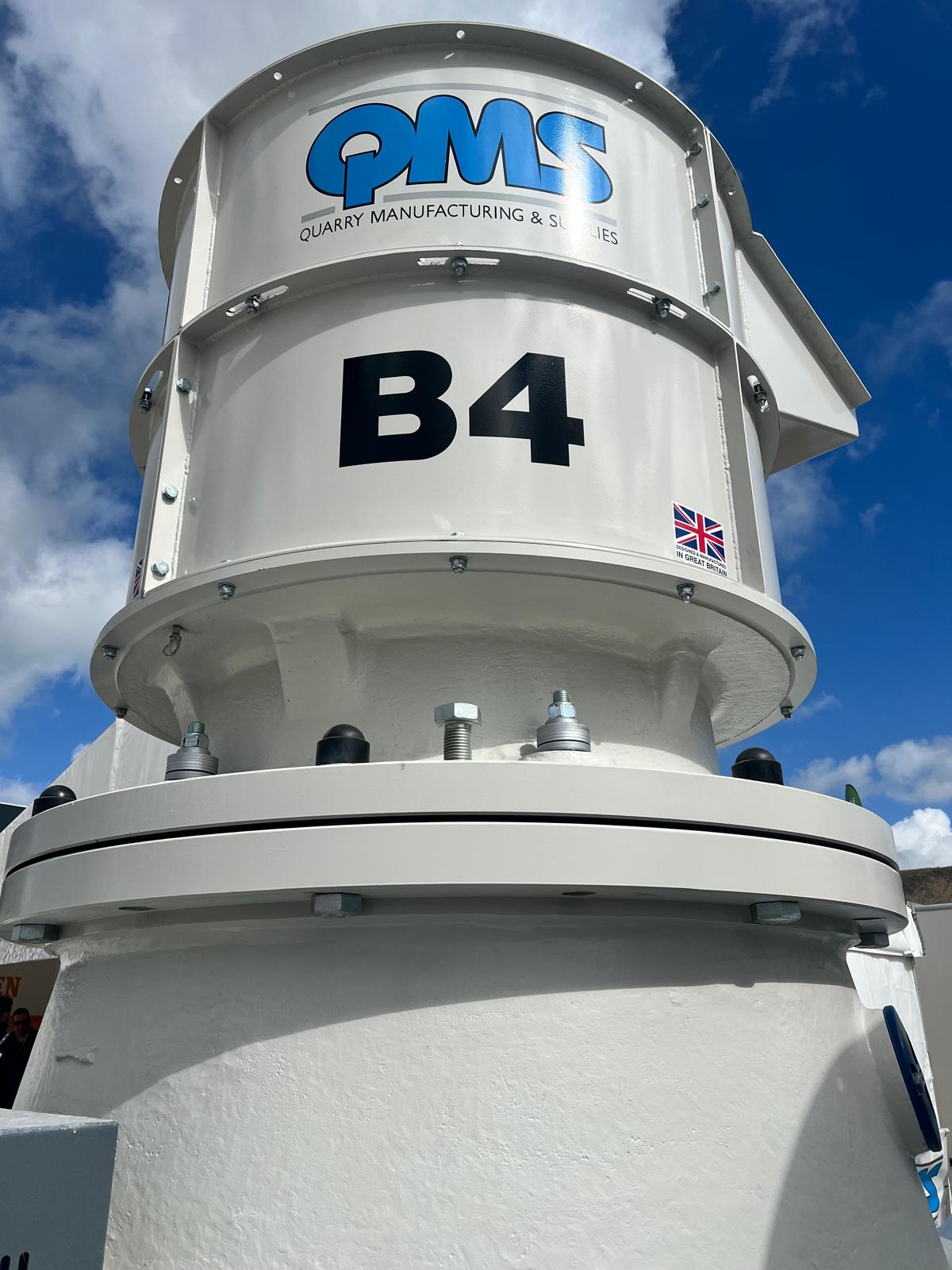

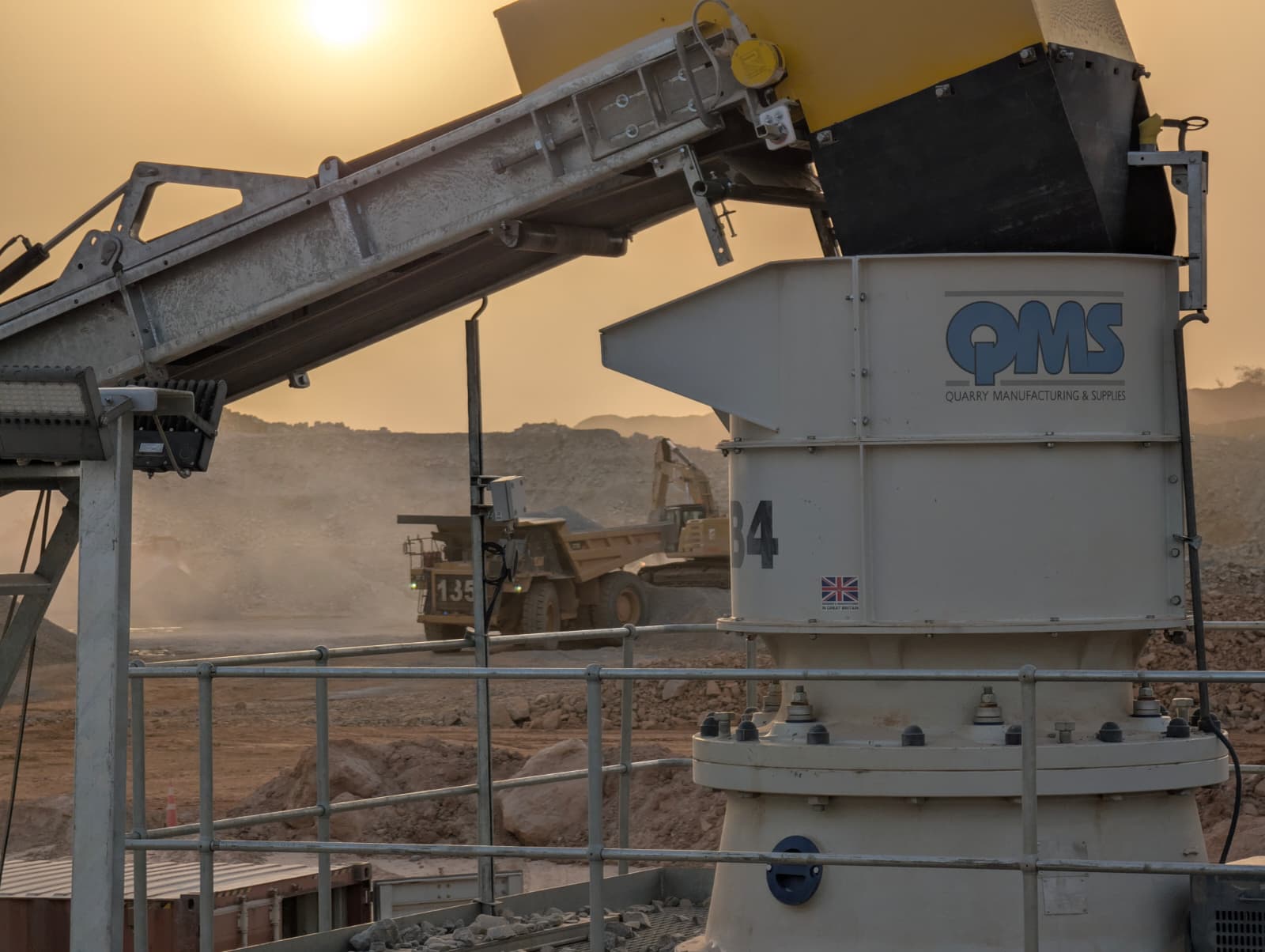

| B4 | 220 (295) | 50-388 | 80-215 | 8-48 | EC, C, MC, M, MF, F | 17,800 |

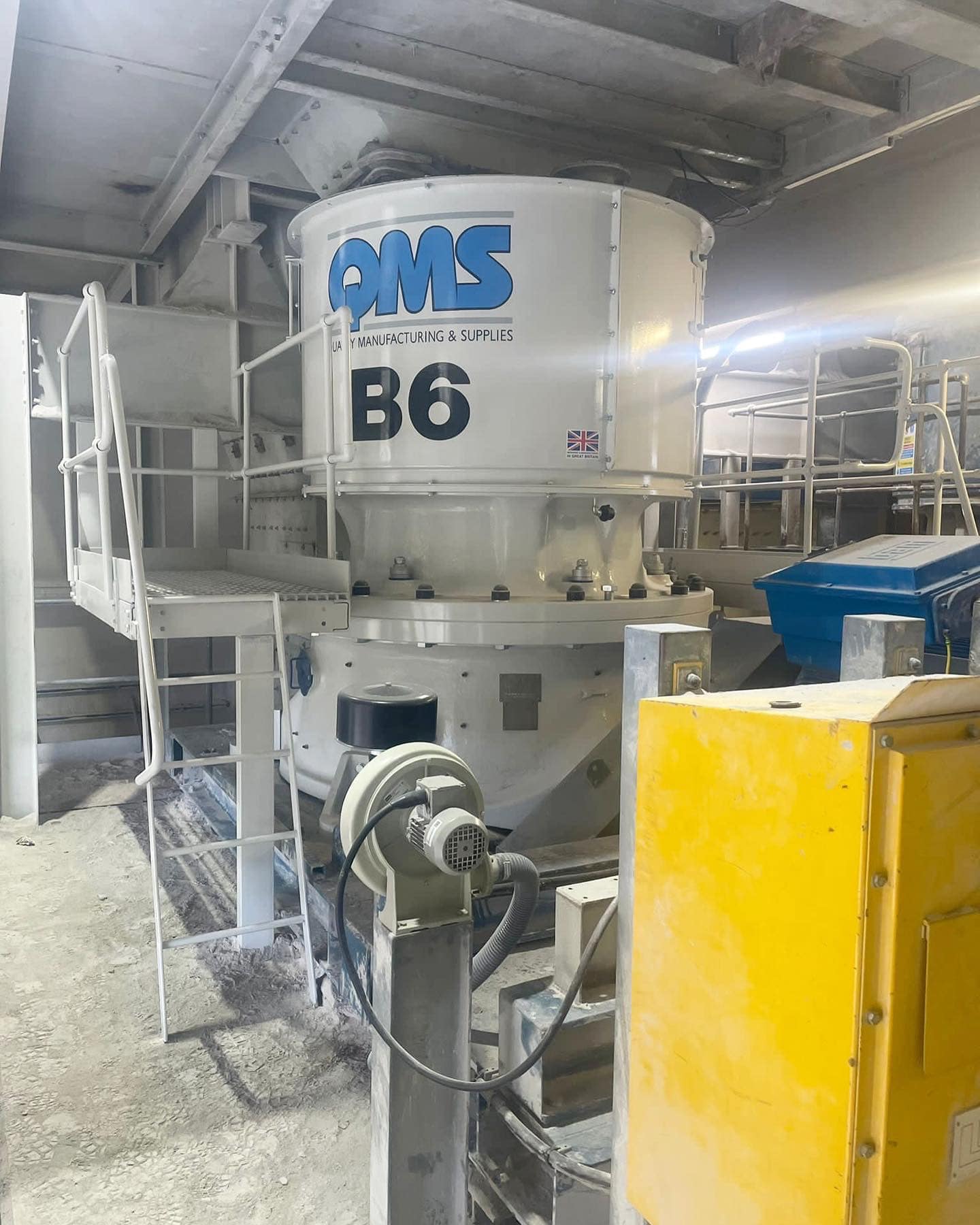

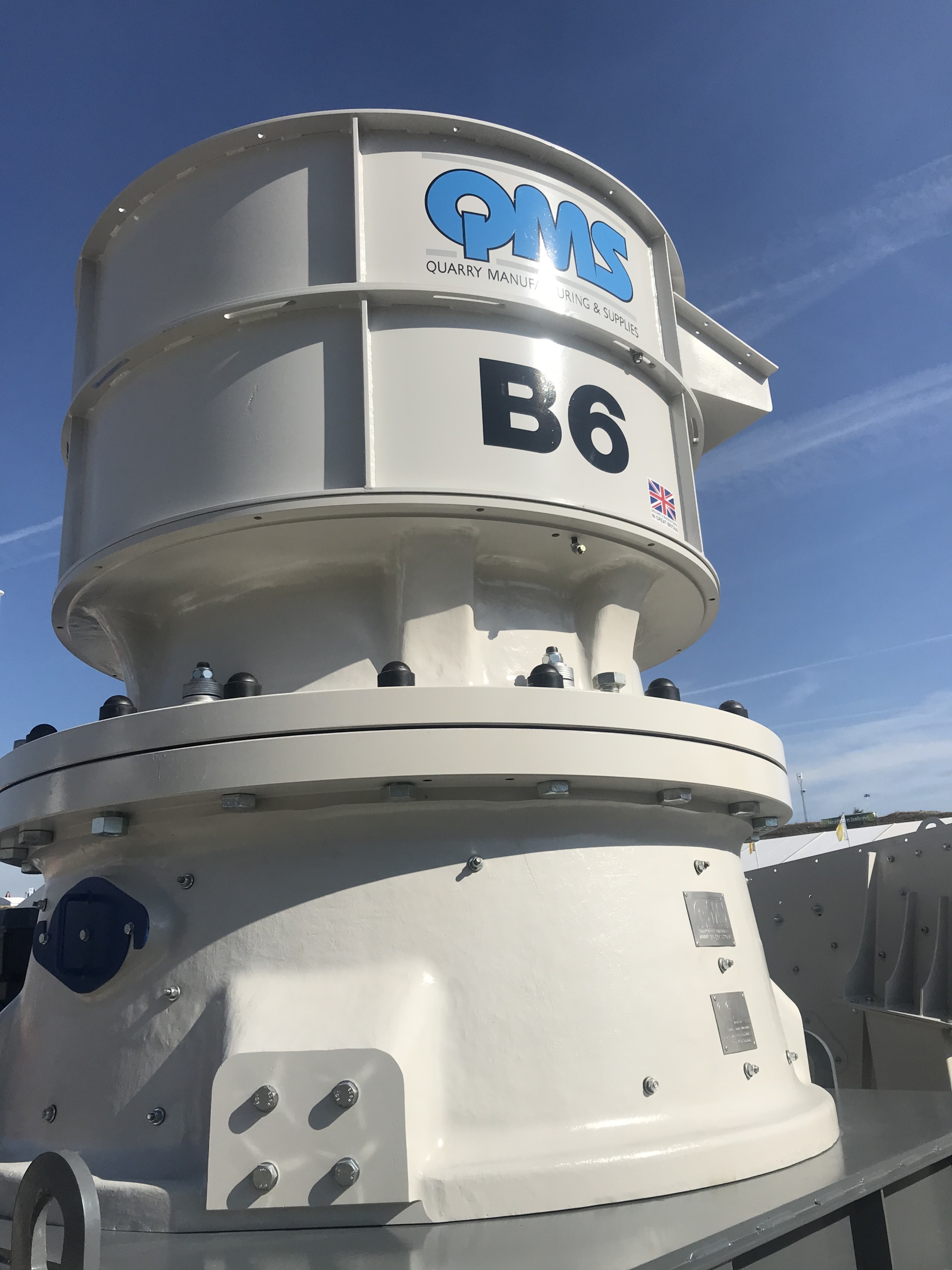

| B6 | 315 (400) | 211-662 | 45-275 | 31-51 | EC, CX, C, MC, M, MF, F EF | 31,200 |
*Weights are approximate, depending on customer specification and/or application.
